Features and Benefits
Designed for one-person operation
Easy to disassemble, reassemble and maintain
Fast loading, typically 15-20 seconds per hole
Holds up to 25 kg (50 lbs) of ANFO blasting agent
Operating air pressure 60-120 PSI
Strong, rigid design with Stainless Steel Fasteners
Application

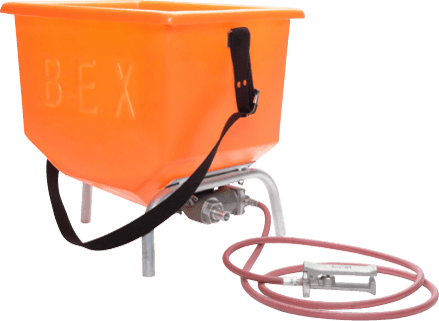

The BEX compact ANFO loader is used to insert low cost ANFO blasting agents into small holes. The loader operates by sucking the ANFO out of the plastic hopper and loading it through an anti-static loading hose by means of rapidly moving air stream.
The prills are loaded into the hole at a high velocity and fracture upon impact, resulting in a high density distribution of the loaded ANFO. The high density packing reduces costs by preventing misfires, improving fragmentation, and lowering mucking. It is also possible to lead boreholes in any orientation, including vertical up-holes.

About Us
BEX has been designing and manufacturing ANFO loaders since 1965. The compact design, reliability and speed of our products have earned us the trust of mining companies all around the world.
